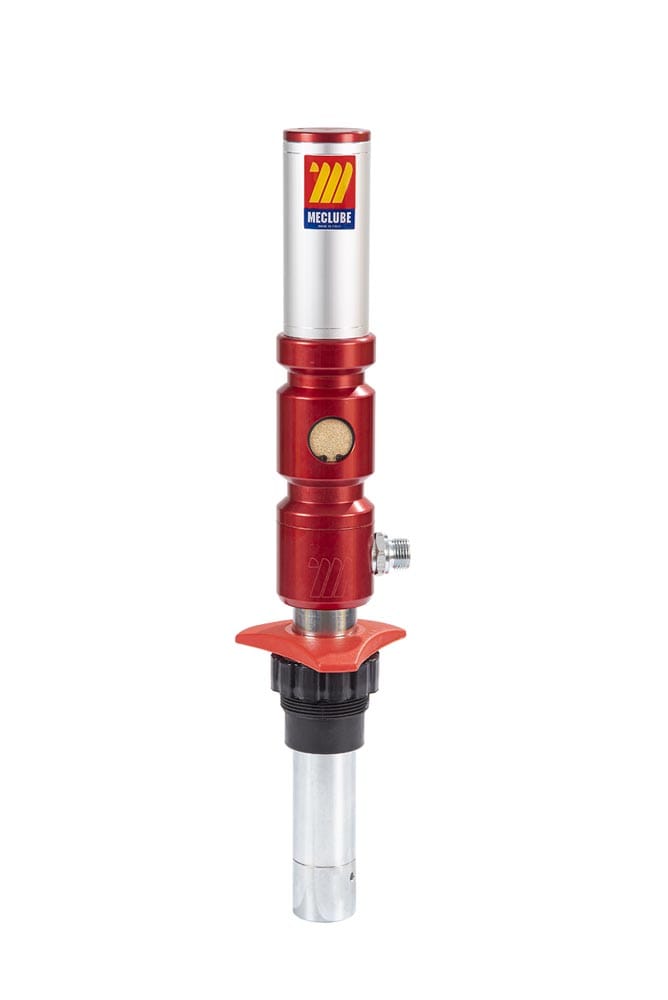

ART: 020-0988-000
For wall-fixing or fixed positions. With additional accessories it allows to make different applications. Viton seals. With threaded ring for drum connection
PDF Download
Details
These pumps are advised for the transfer of low – medium viscosity oil (SAE 15/130), similar fluids and antifreeze, for short-medium distances (40 – 50 m). The delivery capacity of a pump varies according to particular applications and combinations: the pressure of air supplied; viscosity and temperature of the fluid; dimensions of delivery hose; dimensions of connections and type of gun which is used. The operating pressure may vary between a minimum of 3 bar and a maximum of 8 bar. To optimize the performance and the time-life of the air-operated pumps we advise to use filtered and lubricated air
Data sheet
- Gross weight 3.7 kg
- Net weight 3.2 kg
- Compression ratio 3:1
- Air consumption 200 l/min
- Noise level 80 dB
- Shank diameter 42 mm
- Shank length 215 mm
- Working pressure 6-8 bar
- Air Inlet connection F 1/4” G
- Oil outlet connection M 1/2” G
- Oil delivery capacity 8 bar 25 l/min
