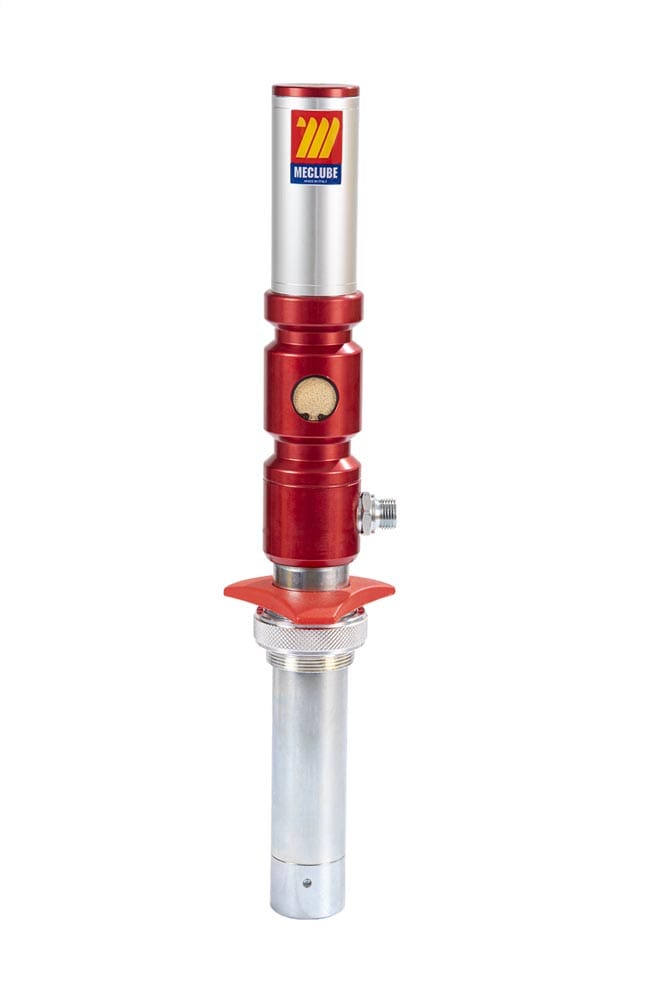

AIR OPERATED OIL PUMP Mod.501 R=1:1 DELIVERY CAPACITY 35 l/min
For wall-fixing or fixed positions. With additional accessories it allows to make different applications. Viton seals. With threaded ring for drum connection
PDF Download
ART: 020-0978-000
Details
These pumps are advised for the transfer of low viscosity oil (SAE 15/80), similar fluids and antifreeze, for short distances (5 – 10 m). The delivery capacity of a pump varies according to particular applications and combinations: the pressure of air supplied; viscosity and temperature of the fluid; dimensions of delivery hose; dimensions of connections and type of gun which is used. The operating pressure may vary between a minimum of 3 bar and a maximum of 8 bar. To optimize the performance and the time-life of the air-operated pumps we advise to use filtered and lubricated air
Data sheet
- Gross weight 4.1 kg
- Net weight 3.6 kg
- Compression ratio 1:1
- Air consumption 200 l/min
- Noise level 80 dB
- Shank diameter 50 mm
- Shank length 250 mm
- Working pressure 6-8 bar
- Air Inlet connection F 1/4” G
- Oil outlet connection M 1/2” G
- Oil delivery capacity 8 bar 35 l/min
