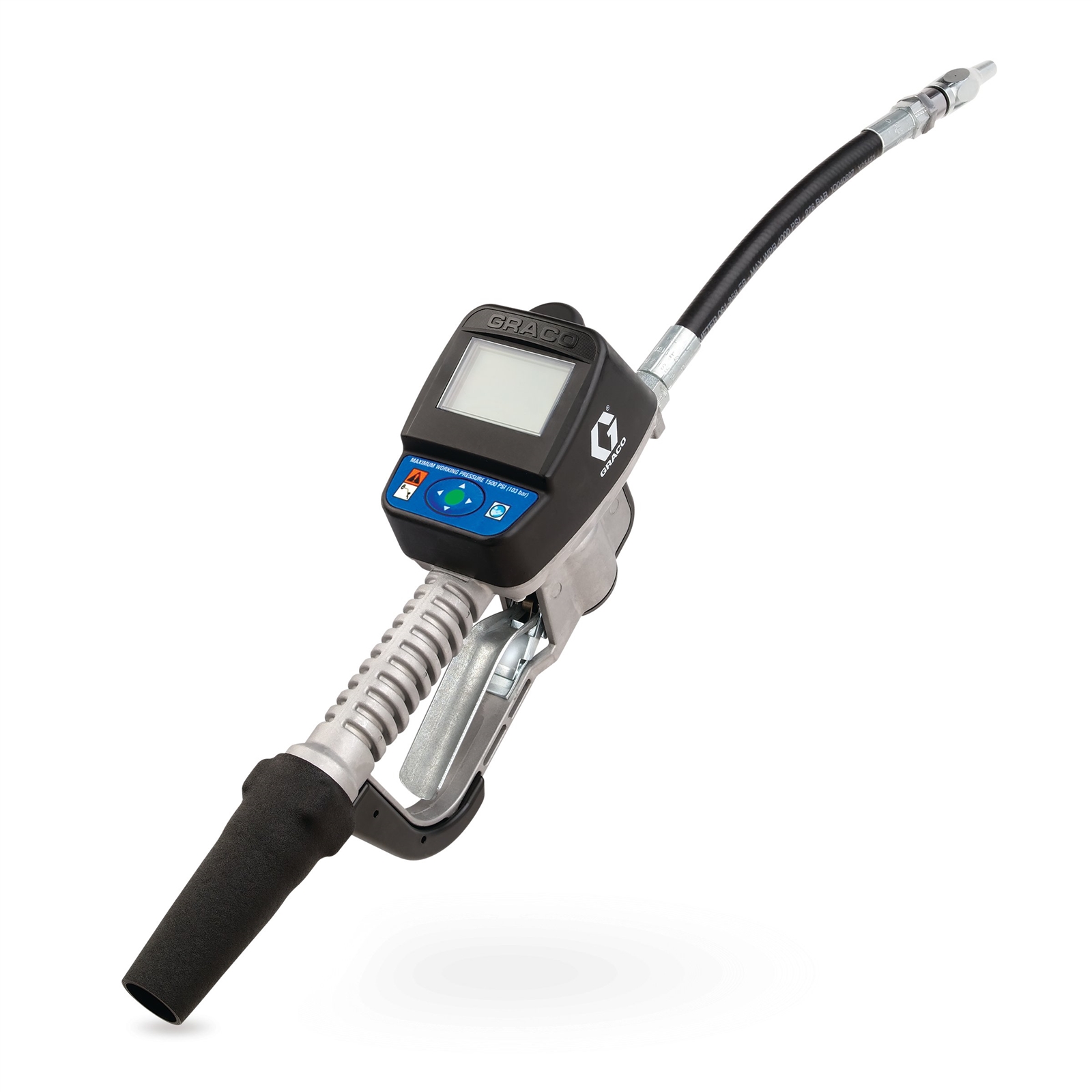

Matrix™ Metered Dispense Valve for Oil Applications – 1/2 in NPT, Flexible Extension, Automatic Nozzle.
Additional information
| Manufacturer | Graco |
|---|---|
| Primary application | Used for automated, wireless oil dispense tracking and bulk tank monitoring. |
| Primary UOM Code | EA |
| UPC Code | 633955359765 |
| Compatible material | Oil;ATF |
| Approvals | FCC;Industry Canada (IC);C-Tick;CE |
| Country code of origin | US |
| Division code | LED |
| Fluid inlet thread gender | Female |
| Fluid outlet thread gender | Female |
| Includes | Meter;Extension;Nozzle;Swivel Boot |
| Inlet thread type | NPT |
| Manual id | 313046 |
| Max working pressure | 105 BAR / 1050 KPA / 1500 PSI |
| Meter accuracy | ±0.5% |
| Outlet thread type | Straight Thread O-Ring Boss |
| Overall height | 5.75 IN / 14.6050 CM / 146.0500 MM |
| Overall width | 3.75 IN / 9.5250 CM / 95.2500 MM |
| Product Page | https://www.graco.com/us/en/vehicle-service/product.256482.html |
| Schedule b | 8481809040 |
| Taxonomy description | Metered Dispense Valves |
| Unit height | 6 IN |
| Unit length | 15.6 IN |
| Unit volume | .39 FT3 |
| Unit weight | 6.64 LBS |
| Unit width | 7.2 IN |
| Wetted material | Aluminum;Stainless Steel;PBT/PC;Zinc;Nitrile Rubber;CS |
| Marketing owner | Salminen, Tyler A (Tyler) |
| Extension type | Flexible |
| Meter technology | Oval Gear |
| Metering gun weight | 0.2270 KG / 5 LB |
| Nozzle type | Automatic;Quick Close |
| Recommended environment | Indoor |
| Trigger lock | Locking |
| Trigger protection type | Integrated Guard |
| Unit of measure | Gallon;Liter;Pint;Quart |
| Warranty | 7 Years Structural;3 Years Electronics;1 Year Wear |
